Fully Customizable Repeaters / Simplex Nodes for the 70cm 440-450MHz Amateur Radio Band.
AllStar Link and EchoLink Supported
Built using the Raspberry Pi platform, and includes everything to be plug in and play!
These are 40 watt radios set 15-20 watts for better duty cycle
2 Week processing time
-Utilizes the Motorola Spectra high end UHF radio
-I will program any frequenices in the radio free of charge
-The rasbperry pi will talk on the AllStar / EchoLink network and I will enter with you're information.

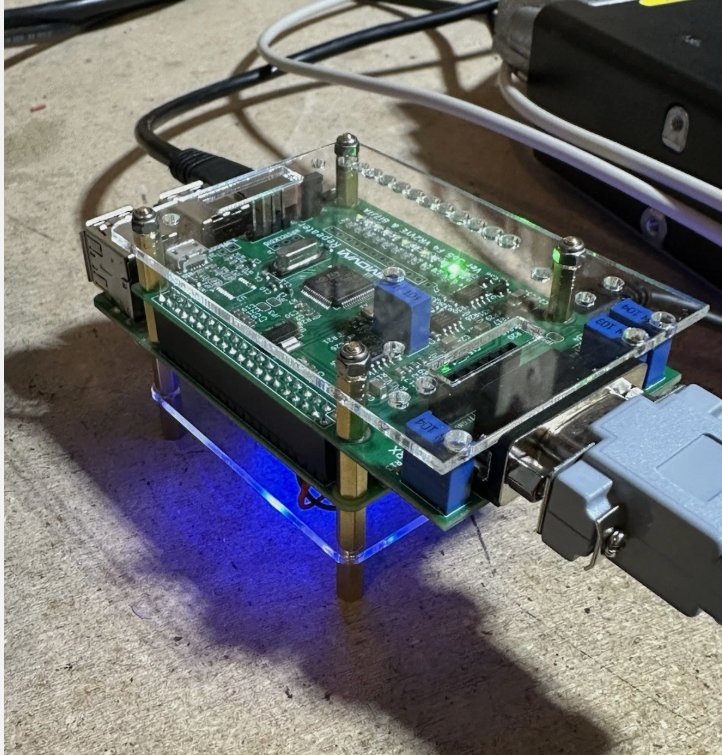

-A custom sound interface was constructed to talk directly to the spectra from the raspberry pi for high quality audio.
-Frequency range of 440-450MHz ( most commonly used on simplex frequenices from 445.7-446.225)
-Includes 12V power cord, Mini UHF to SO239, Raspberry pi, and custom built pi interface card.
-Includes instruction manual for using the AllStar system
-Price: $350 Shipped
Please Contact w0sky981@gmail.com to order and provide information.

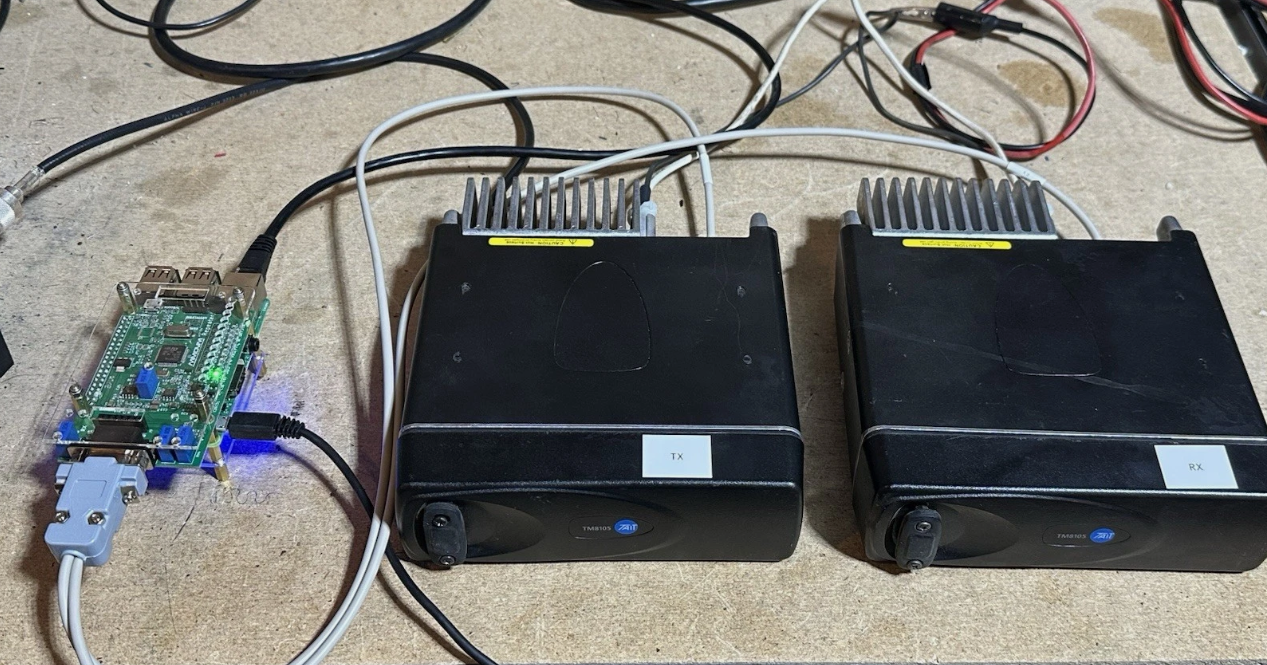

-Two Motorola Spectra Radios built into a Full Duplex Repeater
-Free programming on the channels.
-Same interface as above, but built for TWO radios in Full Duplex Analog mode
-AllStar / EchoLink Capable
-Includes 12V power cord, Mini UHF to SO239, Raspberry pi, and custom built pi interface card.
-Includes instruction manual for using the AllStar system
-Duplexer not included. You will need to run two antennas or get a duplexer.
-Price: $450 Shipped USA
Please Contact w0sky981@gmail.com to order and provide information.
-Radio only, 5 channels of programming No cables.
-Needs Ignition sense connection on rear DB25 for power
-Price: $60 Shipped USA
-Spectra Modification performed for COR output
-3 Ft. Pigtail wire with DB25
-Includes COR, PTT, Audio In, and Audio Out and Ground connections
-Includes instruction manual for using the AllStar system
-Price: $150 Shipped USA
